Energy Monitoring
Our Energy Monitoring products keep you well informed of how much power you use, what your major loads are, when you use electric power the most, how much you pay for it and the quality of the power you use.
Use this Energy Monitoring hardware with our SMART Energy Management solutions to improve your equipment productivity and life, reduce your power usage and its costs and increase your company's profits.
Products

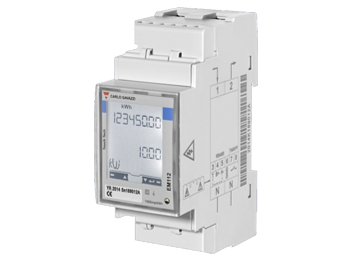

EM100 SMART Energy Meters
Direct connect energy meters with LCD display touch screen measuring basic energy variables with RS485 MODBUS communication for single-phase circuits up to 100A.

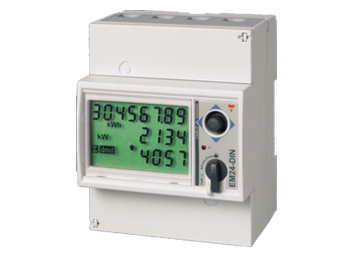

EM24DIN
The EM24 energy meter measures all basic system variables along with power factor, kVArh and records min/max values. This unit provides 4 quadrant metering, which makes it ideal for applications involving bi-directional power flow (import/export systems) along with standard 3-phase applications or 3x 1-phase system measurement. Both direct connect and CT connect options are available along with models featuring inputs for gas and water metering. NMI pattern approved version also now available.

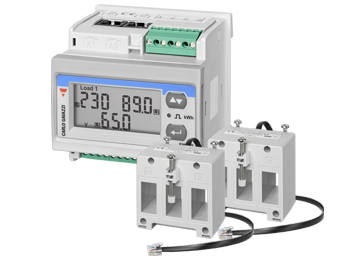

EM270 with Quick Connect CTs
The EM270 is a quick fit energy meter that has been developed with the sole objective of reducing metering space and saving up to 90% on installation time. With just two simple clicks two sets of current transformers may be connected removing all chance of connection errors as well as simultaneously automatically setting the CT ratio. These meters are ideal for monitoring light and power circuits.

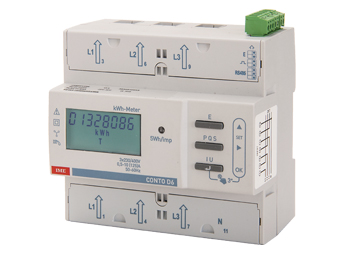

Conto D6
The Conto D6 energy meter is a 3-phase, 4-wire direct connect meter for measurements up to 100A. Featuring pulse outputs with an option for RS485 communication, the Conto D6 can measure total and partial energy, both active and reactive. As well as this, the Conto D6 has two tariff management inputs and can measure voltage, frequency and power factor.

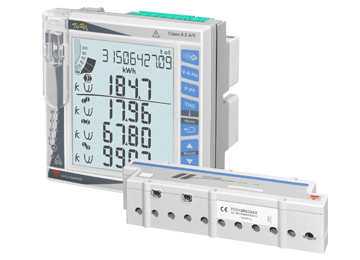

WM50 multifunction meter with branch monitoring
The WM50 power meter features event and data log with 16x alarms available, connecting to the TCD12 split core current transformers (maximum of 8) for single, two and three phase measurements for monitoring of up to 96x circuits. With the TCD12 split core branch monitoring CT's suitable for up to 12 circuits up to 32A, this meter and CT combination is ideal for applications involving monitoring of critical equipment including hospitals, data centres, food storage and industrial production systems.

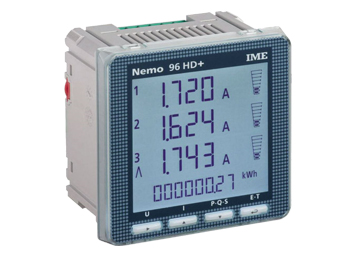

NEMO96HD
The NEMO96HD is a modular three-phase multifunction meter measuring all system variables including minimum and maximum demand values and harmonic distortion for current and voltage up to the 22nd harmonic.
The NEMO96HD+ provides additional functionality that make it suitable for both LV and MV applications with programmable VT ratio from 1 to 1500. Direct input up to 690V (Ph-Ph) and using module IF96017 enables measurement of voltage and current harmonics up to the 50th order.

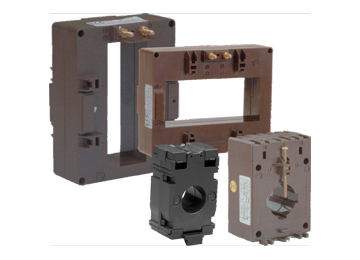

IME CTs
IME solid core current transformers are highly accurate and cover a broad range of sizes and form factors that suit busbar, cable or protection class applications. NHP also has split-core transformers available, ideal for retrofit applications.

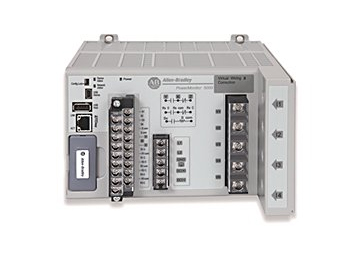

PowerMonitor 5000
Bulletin 1426 PowerMonitor 5000 is the next generation of high-end, power-quality metering products. Building on core power and energy metering capabilities, the PowerMonitor 5000 takes energy monitoring to the next level.

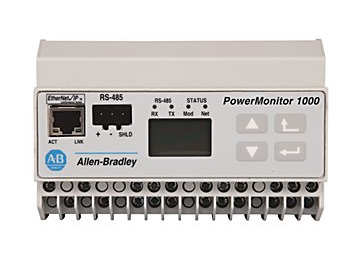

PowerMonitor 1000
Bulletin 1408 PowerMonitor 1000 is a compact power monitor for load profiling, cost allocation, or energy control. Our monitor integrates with your existing energy monitoring systems to provide sub-metering. Our PLCs (PLC-5, SLC, ControlLogix family) easily communicate with the PowerMonitor 1000 to use energy data in control systems.

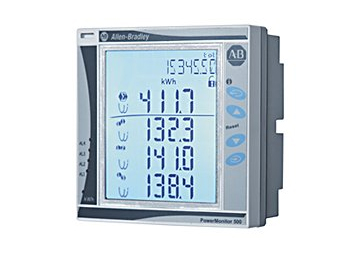

PowerMonitor 500
Bulletin 1408 PowerMonitor 1000 is a compact power monitor for load profiling, cost allocation, or energy control. Our monitor integrates with your existing energy monitoring systems to provide sub-metering. Our PLCs (PLC-5, SLC, ControlLogix family) easily communicate with the PowerMonitor 1000 to use energy data in control systems.

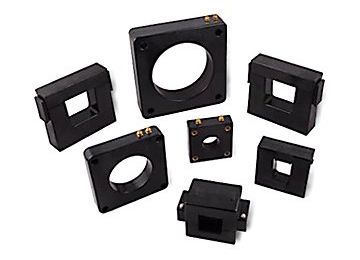

AB current transformers
Bulletin 1408 PowerMonitor 1000 is a compact power monitor for load profiling, cost allocation, or energy control. Our monitor integrates with your existing energy monitoring systems to provide sub-metering. Our PLCs (PLC-5, SLC, ControlLogix family) easily communicate with the PowerMonitor 1000 to use energy data in control systems.
